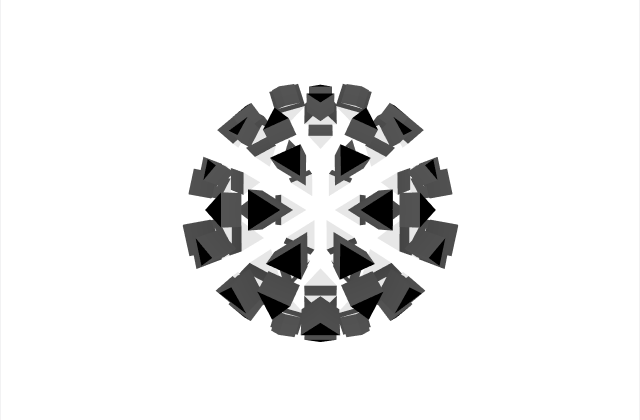

Creating an Interactive 3D Cluster with Three.js, TSL and Three Start

import { Object3DBehaviour } from "three-start";

export class Spin extends Object3DBehaviour {
  #initRotY = 0

  speed = 1

  constructor(speed = 1) {
    super()
    this.speed = speed
  }

  onUpdate() {
    // Make the object spin around the y-axis.
    // The rotation is frame indepentent thanks to the usage of the delta time.
    const dt = this.ctx.getDeltaTime()
    this.object.rotation.y += dt * this.speed
  }

  onDestroy() {
    this.object.rotation.y = this.#initRotY
  }
}

import './style.css';
import * as THREE from "three/webgpu"
import { sobel } from 'three/addons/tsl/display/SobelOperatorNode'
import { bayerDither } from 'three/addons/tsl/math/Bayer'
import { ThreeStart, ThreeContextEvents, addComponent } from "three-start"
import { InnerMaterial } from "./materials/Inner"
import { ClusterMaterial, map } from "./materials/Cluster"
import { Spin } from "./behaviors/Spin"
import { HoverEffect } from "./behaviors/HoverEffect"
import { Fn } from 'three/tsl'

const starter = new ThreeStart()

starter.mount(document.getElementById("app"))
starter.start()

const { scene, camera, renderPipeline, scenePass } = starter.ctx

camera.position.z = 4

const innerGeometry = new THREE.IcosahedronGeometry(1, 1)
const innerMesh = new THREE.Mesh(innerGeometry, InnerMaterial)
innerMesh.name = 'innerMesh'
addComponent(innerMesh, Spin, -0.4)
addComponent(innerMesh, HoverEffect)
scene.add(innerMesh)

const textureLoader = new THREE.TextureLoader()
const matcap = await textureLoader.loadAsync('/yellow-18.png')
matcap.colorSpace = THREE.SRGBColorSpace
map.value = matcap

function createExtrudedFaces(mesh) {
  if (!mesh) return console.error('Mesh is required')

  const { geometry } = mesh
  const { position: meshPosition } = mesh
  const positionAttribute = geometry.getAttribute('position')
  const { length: numVertices } = positionAttribute.array
  const faceCentroid = new THREE.Vector3()
  const faceDirection = new THREE.Vector3()
  const instanceMatrix = new THREE.Matrix4()

  // We need to count how many faces the base mesh has.
  // We can calculate it by dividing the number of vertices by the number of vertices per face.
  // Each face has 3 vertices, and each vertex has 3 components (x, y, z), so we divide by 9.
  const numFaces = numVertices / 9

  // Create the batched mesh
  const facesMesh = new THREE.BatchedMesh(
    numFaces,
    numVertices * 6,
    numVertices * 6,
    ClusterMaterial,
  )

  facesMesh.name = 'facesMesh'

  // Iterate over the vertices of the base mesh; 9, so 1 face, per loop iteration.
  // For each loop iteration, we need to create a new instance geometry.
  // The instance geometry will be a triangle with the same vertices as the base mesh.
  let i
  for (i = 0; i < numVertices; i += 9) {
    // Get the vertices of the face.
    const x1 = positionAttribute.array[i + 0]
    const y1 = positionAttribute.array[i + 1]
    const z1 = positionAttribute.array[i + 2]

    const x2 = positionAttribute.array[i + 3]
    const y2 = positionAttribute.array[i + 4]
    const z2 = positionAttribute.array[i + 5]

    const x3 = positionAttribute.array[i + 6]
    const y3 = positionAttribute.array[i + 7]
    const z3 = positionAttribute.array[i + 8]

    // Calculate the centroid
    faceCentroid.set(x1 + x2 + x3, y1 + y2 + y3, z1 + z2 + z3).divideScalar(3)

    // Calculate the normal of the face by subtracting the centroid from the mesh position and normalizing the result.
    faceDirection.copy(faceCentroid).sub(meshPosition).normalize()

    const faceExtrusion = 0.45

    const x4 = x1 + faceDirection.x * faceExtrusion
		const y4 = y1 + faceDirection.y * faceExtrusion
		const z4 = z1 + faceDirection.z * faceExtrusion

		const x5 = x2 + faceDirection.x * faceExtrusion
		const y5 = y2 + faceDirection.y * faceExtrusion
		const z5 = z2 + faceDirection.z * faceExtrusion

		const x6 = x3 + faceDirection.x * faceExtrusion
		const y6 = y3 + faceDirection.y * faceExtrusion
		const z6 = z3 + faceDirection.z * faceExtrusion

    // Create the instance geometry.
    const instanceGeometry = new THREE.BufferGeometry()

    // Create the `position` attribute array for the instance geometry.
    const attributeArray = new Float32Array([
      x1, y1, z1,
      x3, y3, z3,
      x2, y2, z2,

      x1, y1, z1,
      x2, y2, z2,
      x4, y4, z4,

      x2, y2, z2,
      x5, y5, z5,
      x4, y4, z4,

      x2, y2, z2,
      x3,	y3,	z3,
      x5,	y5,	z5,

      x3, y3, z3,
      x6, y6, z6,
      x5, y5, z5,

      x3, y3, z3,
      x1, y1, z1,
      x6, y6, z6,

      x1, y1, z1,
      x4, y4, z4,
      x6, y6, z6,

      x4, y4, z4,
      x5, y5, z5,
      x6, y6, z6,
    ])
    const posAttribute = new THREE.Float32BufferAttribute(attributeArray, 3)
    instanceGeometry.setAttribute('position', posAttribute)

    // Translate the instance geometry back to the centroid.
    instanceGeometry.translate(-faceCentroid.x, -faceCentroid.y, -faceCentroid.z)

    // Compute the vertex normals for the instance geometry.
    // instanceGeometry.computeVertexNormals()

    // Add the instance geometry to the faces mesh.
    const instanceGeometryID = facesMesh.addGeometry(instanceGeometry)
    const instanceID = facesMesh.addInstance(instanceGeometryID)

    // Set the matrix of the instance.
    instanceMatrix.makeTranslation(faceCentroid.x, faceCentroid.y, faceCentroid.z)
    facesMesh.setMatrixAt(instanceID, instanceMatrix)
   }

  facesMesh.geometry.computeVertexNormals()

  innerMesh.add(facesMesh)
}

createExtrudedFaces(innerMesh)

const scenePassColor = scenePass.getTextureNode()
const scenePassDepth = scenePass.getTextureNode('depth')

const scenePassSobel = sobel(scenePassDepth)
const sobelPass = Fn(() => {
  return scenePassSobel.step(0.01)
})()

const outputPass = Fn(() => {
  const result = scenePassColor.add(sobelPass)
  result.assign(bayerDither(result))

  return result
})()

renderPipeline.outputNode = outputPass

import { MeshBasicNodeMaterial, DataTexture } from 'three/webgpu'
import {
  attribute,
  positionLocal,
  Fn,
  float,
  mx_noise_float,
  time,
  vec3,
  normalWorld,
  positionWorld,
  mix,
  dot,
  modelWorldMatrix,
  uniform,
  matcapUV,
  texture
} from 'three/tsl'
import { hoverEffect } from './Inner'

const dummyTexture = new DataTexture(new Uint8Array([0, 0, 0, 0]), 1, 1)

export const ClusterMaterial = new MeshBasicNodeMaterial()

export const map = uniform(dummyTexture)

const scaleMin = float(0.15)
const scaleMax = float(0.75)
const centered = attribute('position', 'vec3')
const centroid = positionLocal.sub(centered)

const centroidWS = modelWorldMatrix.mul(centroid)
const hover = hoverEffect(centroidWS)

// Set the colors.
// ColorA is the color when the face is facing the center of the mesh.
// ColorB is the color when the face is facing away from the center of the mesh.
const colorA = vec3(0.8)
const colorB = vec3(0)

// Calculate a normalize vector that goes from the mesh instance to the center of the world.
const toOrigin = vec3(0).sub(positionWorld).normalize()

// Calculate the dot product and remap it to the [0, 1] range.
const dotRemapped = dot(normalWorld, toOrigin).remap(-1, 1, 0, 1)

ClusterMaterial.colorNode = Fn(() => {
  const toOrigin = vec3(0).sub(positionWorld).normalize()
  const dotRemapped = dot(normalWorld, toOrigin).remap(-1, 1, 0, 1)
  const matcap = texture(map.value, matcapUV).toVec3()

  const colAToMatcap = mix(colorA, matcap, hover)

  // Mix the colors based on the dot product.
  // The dot product is altered with the smoothstep function only for visual purposes.
  // This way the sides have a darker color.
  return mix(colorB, colAToMatcap, dotRemapped.smoothstep(0.35, 0.95))
})()

ClusterMaterial.positionNode = Fn(() => {
  const t = time.mul(0.5)

  const noise = mx_noise_float(centroid.yz.add(t))
  noise.remapAssign(-1, 1, scaleMin, scaleMax)

  // Additional scale factor based on the hover effect,
  // remapped to the [0, 0.45] range just not to go too high with the final value
  const scaleByHover = hover.remap(0, 1, 0, 0.45)

  return centroid.add(centered.mul(noise.add(scaleByHover)))
})()

import { Fn, uniform, vec3, positionWorld, distance } from 'three/tsl'
import { MeshBasicNodeMaterial, BackSide } from 'three/webgpu'

export const InnerMaterial = new MeshBasicNodeMaterial({
  side: BackSide,
  colorWrite: false,
  depthWrite: false,
})

export const hoverPointWS = uniform(vec3(0))
export const effectStrength = uniform(0)

// Function to calculate the hover effect based on the position in world space.
// It calculates the distance between the position and the hover point,
// clamps it in the range [0, 1], and then applies a smoothstep function to it.
// Then multiplies the result by the effect strength because we're going to fade it /inout.
//
// This function is exported because we're going to use it in the ClusterMaterial as well.
export const hoverEffect = Fn(([positionWS]) => {
  return distance(positionWS, hoverPointWS)
          .clamp(0, 1)
          .smoothstep(0.8, 0.2)
          .mul(effectStrength)
})

InnerMaterial.colorNode = Fn(() => {
  return hoverEffect(positionWorld)
})()
