Smooth Morph

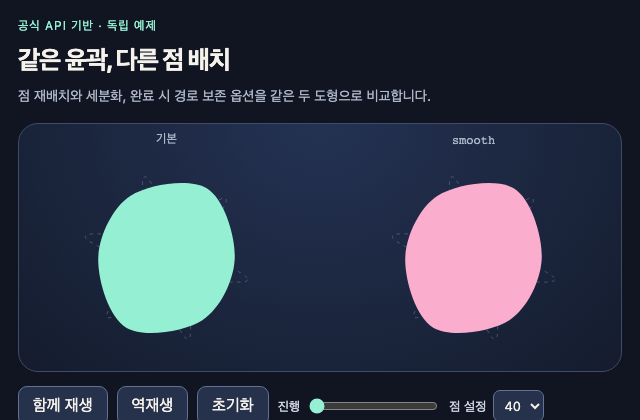

<main class="study"><p class="study-label">공식 API 기반 · 독립 예제</p><header><h2>같은 윤곽, 다른 점 배치</h2><p>점 재배치와 세분화, 완료 시 경로 보존 옵션을 같은 두 도형으로 비교합니다.</p></header><div class="stage pair"><figure><figcaption>기본</figcaption><svg viewBox="0 0 240 240" role="img" aria-label="기본 곡선"><path d="M212.73 144.85 C210.74 152.25 163.84 141.21 152.53 152.53 C141.21 163.84 152.25 210.74 144.85 212.73 C137.44 214.71 123.55 168.57 108.09 164.43 C92.64 160.29 57.54 193.30 52.12 187.88 C46.70 182.46 79.71 147.36 75.57 131.91 C71.43 116.45 25.29 102.56 27.27 95.15 C29.26 87.75 76.16 98.79 87.47 87.47 C98.79 76.16 87.75 29.26 95.15 27.27 C102.56 25.29 116.45 71.43 131.91 75.57 C147.36 79.71 182.46 46.70 187.88 52.12 C193.30 57.54 160.29 92.64 164.43 108.09 C168.57 123.55 214.71 137.44 212.73 144.85Z" fill="none" stroke="#a0adca" stroke-dasharray="4 5" opacity=".4"/><path class="morph-path" d="M198.00 120.00 C197.17 145.11 181.67 177.74 161.00 191.01 C140.33 204.29 93.83 211.51 74.00 199.67 C54.17 187.84 41.17 145.11 42.00 120.00 C42.83 94.89 58.33 62.26 79.00 48.99 C99.67 35.71 146.17 28.49 166.00 40.33 C185.83 52.16 198.83 94.89 198.00 120.00Z" fill="#95efd2"/></svg></figure><figure><figcaption>smooth</figcaption><svg viewBox="0 0 240 240" role="img" aria-label="smooth 곡선"><path d="M212.73 144.85 C210.74 152.25 163.84 141.21 152.53 152.53 C141.21 163.84 152.25 210.74 144.85 212.73 C137.44 214.71 123.55 168.57 108.09 164.43 C92.64 160.29 57.54 193.30 52.12 187.88 C46.70 182.46 79.71 147.36 75.57 131.91 C71.43 116.45 25.29 102.56 27.27 95.15 C29.26 87.75 76.16 98.79 87.47 87.47 C98.79 76.16 87.75 29.26 95.15 27.27 C102.56 25.29 116.45 71.43 131.91 75.57 C147.36 79.71 182.46 46.70 187.88 52.12 C193.30 57.54 160.29 92.64 164.43 108.09 C168.57 123.55 214.71 137.44 212.73 144.85Z" fill="none" stroke="#a0adca" stroke-dasharray="4 5" opacity=".4"/><path class="morph-path" d="M198.00 120.00 C197.17 145.11 181.67 177.74 161.00 191.01 C140.33 204.29 93.83 211.51 74.00 199.67 C54.17 187.84 41.17 145.11 42.00 120.00 C42.83 94.89 58.33 62.26 79.00 48.99 C99.67 35.71 146.17 28.49 166.00 40.33 C185.83 52.16 198.83 94.89 198.00 120.00Z" fill="#fbadce"/></svg></figure></div><div class="controls"><button id="play" type="button">함께 재생</button><button id="reverse" type="button">역재생</button><button id="reset" type="button">초기화</button><label>진행<input id="progress" type="range" min="0" max="100" value="0" step="1"></label><label>점 설정<select id="points"><option>20</option><option selected>40</option><option>80</option></select></label><label><input id="redraw" type="checkbox" checked>다시 배치</label><label><input id="persist" type="checkbox">결과 경로 유지</label><label><input id="static-mode" type="checkbox">정적 보기</label></div><p class="readout" id="reading" aria-live="off"></p><p class="endpoint-note">점선은 새로 그린 도착 윤곽입니다. 어느 방식이 항상 더 좋다고 가정하지 않습니다.</p></main>

*{box-sizing:border-box}body{background:#111522;color:#f5f2eb;font-family:system-ui,sans-serif;margin:0}button{font:inherit}.study{margin:0 auto;max-width:1100px;min-height:100vh;padding:clamp(20px,4vw,42px)}.study-label{color:#95efd2;font-size:12px;letter-spacing:.08em;margin:0 0 24px}header h2{font-size:clamp(24px,4vw,40px);letter-spacing:-.04em;margin:0 0 12px}header p{color:#aeb7c9;line-height:1.6;margin:0 0 24px;max-width:62ch}.controls{display:flex;flex-wrap:wrap;gap:8px;margin:20px 0}button{background:#26314b;border:1px solid #617394;border-radius:9px;color:#f5f2eb;cursor:pointer;padding:9px 14px}button:hover{background:#334261}button:focus-visible{outline:3px solid #95efd2;outline-offset:3px}button:disabled{cursor:default;opacity:.45}.stage{align-items:center;background:radial-gradient(ellipse at top,#243253,#141c2d);border:1px solid #3d4c68;border-radius:20px;display:flex;justify-content:center;min-height:220px;overflow:hidden;position:relative}.note{color:#aeb7c9;font-size:13px;line-height:1.5}.readout{color:#95efd2;font-family:ui-monospace,monospace;font-size:13px;min-height:2em}.stage svg{display:block;max-width:100%}code{font-family:ui-monospace,monospace}button[aria-pressed="true"]{background:#95efd2;color:#111522}


.study{padding:18px;max-width:960px}.study-label{margin-bottom:10px}header h2{font-size:clamp(22px,4vw,32px);margin-bottom:8px}header p{font-size:14px;margin-bottom:16px}.controls{align-items:center;gap:9px;margin:14px 0}.controls label{align-items:center;color:#cbd4e3;display:flex;flex-wrap:wrap;font-size:13px;gap:7px}.controls input[type=range]{accent-color:#95efd2;max-width:145px}.controls select{background:#26314b;border:1px solid #617394;border-radius:7px;color:#f5f2eb;font:inherit;padding:6px}.stage{min-height:180px}.readout{line-height:1.5;margin:8px 0}.small-code{background:#172036;border:1px solid #354258;border-radius:10px;color:#c3d1e7;font-size:12px;line-height:1.5;max-height:180px;overflow:auto;padding:12px;white-space:pre-wrap;word-break:break-word}.pair{display:flex;gap:12px;justify-content:center}.pair figure{flex:1;margin:0;max-width:300px;min-width:0;padding:8px}.pair figcaption{color:#aeb7c9;font-family:ui-monospace,monospace;font-size:12px;margin-bottom:6px;text-align:center}.pair svg{display:block;max-height:210px;width:100%}.tile-art{align-items:center;border-radius:14px;color:#152039;display:flex;justify-content:center}.tile-art svg{height:65%;width:65%}.menu-stage{min-height:196px;padding:18px}.menu-panels{display:flex;gap:10px;max-width:570px;width:100%}.menu-panel{align-items:center;background:linear-gradient(135deg,#95efd2,#75d8ed);border-radius:14px;color:#142137;display:flex;flex:1;flex-direction:column;font-weight:650;gap:10px;justify-content:center;min-height:135px;min-width:0;padding:12px}.menu-panel:nth-child(2){background:linear-gradient(135deg,#fbadce,#897dff)}.menu-panel:nth-child(3){background:linear-gradient(135deg,#ffd28c,#fc7f8e)}.menu-panel svg{height:58px;width:58px}.icon-bars{display:inline-flex;flex-direction:column;gap:5px;margin-right:7px;vertical-align:middle}.icon-bars span{background:currentColor;display:block;height:2px;width:17px}.endpoint-note{color:#aeb7c9;font-size:12px;line-height:1.5}button[hidden],[hidden]{display:none!important}@media(max-width:380px){.study{padding:14px}.controls label{max-width:100%}.menu-panels{gap:6px}.menu-panel{font-size:12px;padding:7px}.pair{gap:0}}

gsap.registerPlugin(MorphSVGPlugin);

const q=selector=>document.querySelector(selector),qa=selector=>Array.from(document.querySelectorAll(selector));
const studyAbort=new AbortController(),studyCleanup=[];
const listen=(target,type,handler)=>target.addEventListener(type,handler,{signal:studyAbort.signal});
const preference=matchMedia('(prefers-reduced-motion: reduce)'),staticControl=q('#static-mode');
staticControl.checked=preference.matches;staticControl.disabled=preference.matches;
const isStatic=()=>staticControl.checked||preference.matches;
let applyMode=()=>{};
listen(staticControl,'change',()=>applyMode());
listen(preference,'change',()=>{staticControl.checked=preference.matches;staticControl.disabled=preference.matches;applyMode();});
listen(window,'pagehide',()=>{studyCleanup.forEach(cleanup=>cleanup());studyAbort.abort();});
const reading=text=>q('#reading').textContent=text;

const SOURCE="M198.00 120.00 C197.17 145.11 181.67 177.74 161.00 191.01 C140.33 204.29 93.83 211.51 74.00 199.67 C54.17 187.84 41.17 145.11 42.00 120.00 C42.83 94.89 58.33 62.26 79.00 48.99 C99.67 35.71 146.17 28.49 166.00 40.33 C185.83 52.16 198.83 94.89 198.00 120.00Z",DESTINATION="M212.73 144.85 C210.74 152.25 163.84 141.21 152.53 152.53 C141.21 163.84 152.25 210.74 144.85 212.73 C137.44 214.71 123.55 168.57 108.09 164.43 C92.64 160.29 57.54 193.30 52.12 187.88 C46.70 182.46 79.71 147.36 75.57 131.91 C71.43 116.45 25.29 102.56 27.27 95.15 C29.26 87.75 76.16 98.79 87.47 87.47 C98.79 76.16 87.75 29.26 95.15 27.27 C102.56 25.29 116.45 71.43 131.91 75.57 C147.36 79.71 182.46 46.70 187.88 52.12 C193.30 57.54 160.29 92.64 164.43 108.09 C168.57 123.55 214.71 137.44 212.73 144.85Z",paths=qa('.morph-path');
let morphTweens=[];
const inspect=()=>{q('#progress').value=Math.round((morphTweens[0]?.progress()||0)*100);reading('진행 '+q('#progress').value+'% · 경로 문자열 길이 '+paths.map(path=>path.getAttribute('d').length).join(' / '));};
function rebuild(){morphTweens.forEach(t=>t.kill());paths.forEach(path=>path.setAttribute('d',SOURCE));
const configured={smooth:{points:Number(q("#points").value),redraw:q("#redraw").checked,persist:q("#persist").checked}};
morphTweens=paths.map((path,i)=>gsap.to(path,{paused:true,duration:1.8,ease:'none',morphSVG:{shape:DESTINATION,...(i?configured:{})},onUpdate:()=>{if(i===0)inspect();}}));inspect();}
listen(q('#play'),'click',()=>{rebuild();morphTweens.forEach(t=>isStatic()?t.progress(1,true):t.play());inspect();});
listen(q('#reverse'),'click',()=>{morphTweens.forEach(t=>isStatic()?t.progress(0,true):t.reverse());inspect();});
listen(q('#reset'),'click',rebuild);
listen(q('#progress'),'input',e=>{morphTweens.forEach(t=>t.pause().progress(Number(e.target.value)/100,true));inspect();});
for(const selector of ["#points","#redraw","#persist"])listen(q(selector),"change",rebuild);
applyMode=()=>{rebuild();reading(isStatic()?'정적 보기 · 채운 시작 윤곽과 점선 도착 윤곽':'진행 0%');};
studyCleanup.push(()=>morphTweens.forEach(t=>t.kill()));applyMode();
